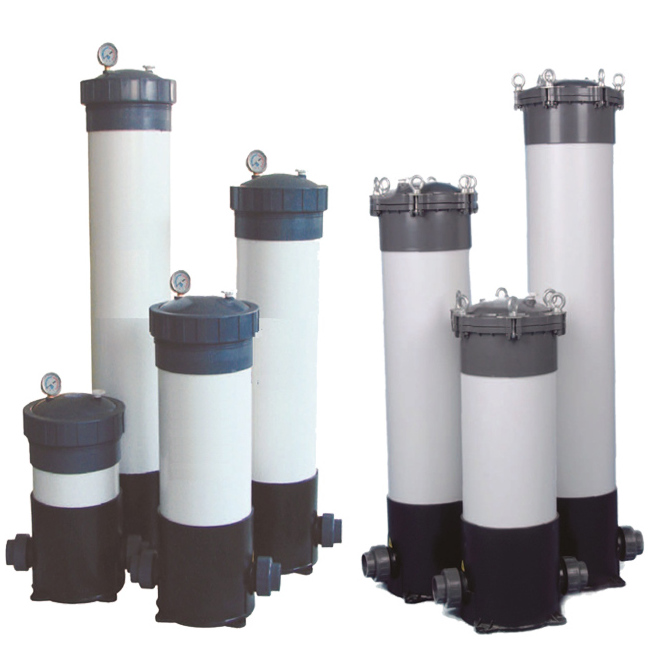

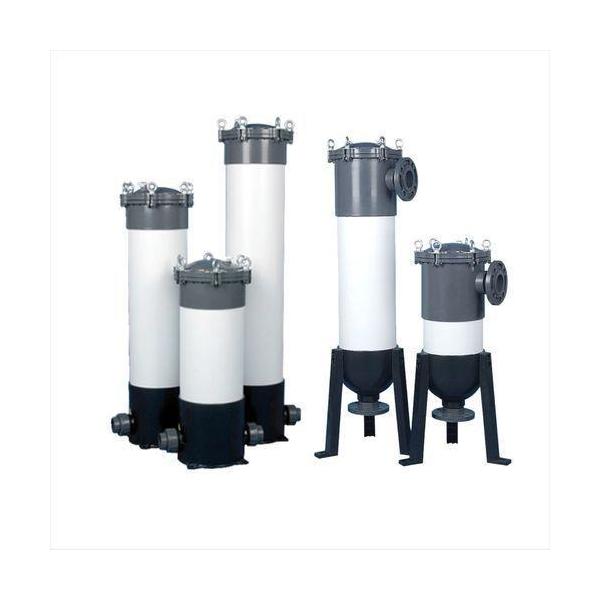

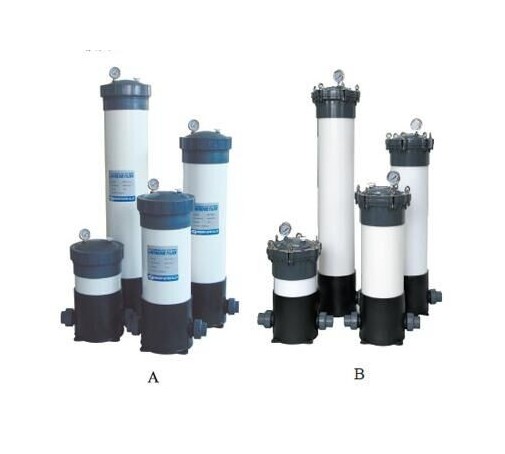

Unplasticized Polyvinyl Chloride (UPVC) Multi Cartridge Filter Housings
Gallery Images
Product Line Description
UPVC Cartridge Filter Housing must have the right features to set them apart from the other cartridge filter housings. These features should also contribute to the overall excellent performance and efficiency of the device.
PVC Cartridge Filter Housings have a very simple design with high filtering quality. PVC Cartridge Filters are normally used in Corrosive and Sea Water application because of its material compatibility.
| Specifications | |
|---|---|
| Brands | HUAMO JMCC |
| Construction Material | Polyvinyl Chloride (PVC) |
| Inlet and Outlet End Connections Size | 1.5 in |
| Thread Type | British Standard Pipe (BSP) |
| Closure Type | Nut-Bolt Union Closure |
| Number of Cartridges | 5 9 |
| Cartridge Size | 10 in 20 in 30 in 40 in |
| Maximum Pressure Withstanding Capacity for Union Connection | 60 psi |
| Continuous Pressure Withstanding Capacity for Union Connection | 45 psi |
| Maximum Pressure Withstanding Capacity for Bolt and Nut Connection | 100 psi |
| Continuous Pressure Withstanding Capacity for Bolt and Nut Connection | 75 psi |
| Keywords | UPVC Cartridge Filter Housing UPVC Filter Housing UPVC Multi Cartridges Filter Housing |
| Additional Information | |
| They are normally used as polishing filter in almost all process industries. The PVC Cartridge Filter Housing system provides an economical alternative to stainless steel. It is made of durable, corrosion resistant PVC and suitable for low pressure applications. | |
Related Products
Items: 1

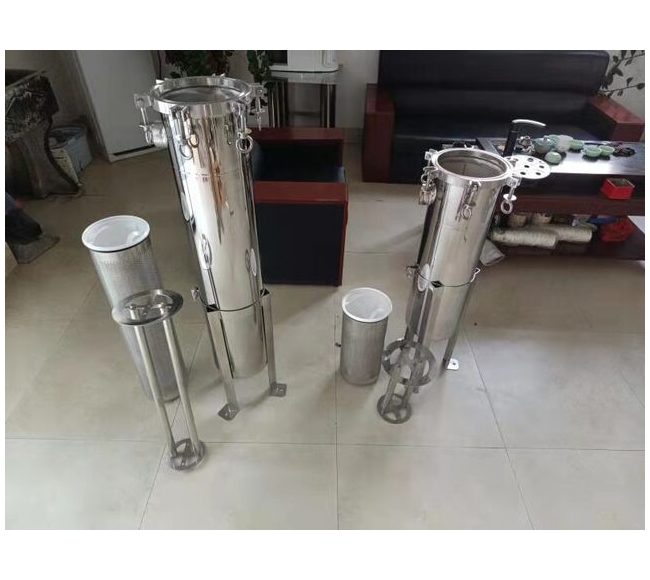

304 Stainless Steel Magnetic Bag Filters
