Depth Pleated Filter Cartridges
Gallery Images
Product Line Description
Depth Pleated Filter Cartridge cater to high efficiency filtration requirement. They are constructed of superior quality fiber which providing dirt holding capacity. The pleated filter cartridge have a superior flow characteristics with low pressure drop. The high surface More…
| Specifications | |
|---|---|
| Brands | JMCC |
| Material of Construction | |
| Support | Polypropylene (PP) |
| Core/End Adapter | Polypropylene (PP) |
| Netting | Polyethylene |

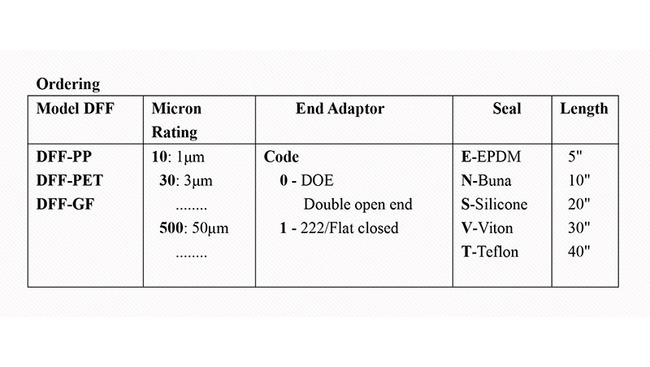

| Ordering Information | |
| Model | DFF-GF – Glass Fiber DFF-PET – Polyethylene Terephthalate (PET) DFF-PP – Polypropylene (PP) |
| Micron Rating | 10 – 1 µm 30 – 3 µm 50 – 5 µm 100 – 10 µm 200 – 20 µm 500 – 50 µm |
| End Adapter | 0 – DOE (Double Open End) 1 – 222/Flat Closed |
| Seal Materials | E – Ethylene Propylene Diene Monomer (EPDM) N – Buna S – Silicone T – Polytetrafluoroethylene (PTFE) V – Fluorocarbon (FKM) |
| Dimensions | |
| Length | 5 – 5 in. 10 – 10 in. 20 – 20 in. 30 – 30 in. 40 – 40 in. |
| Outside Diameter | 2.7 in 69 mm |
| Recommended Operating Conditions | |
| Forward Pressure at 20 Degree Celsius (ºC) Temperature | 5 bar |
| Forward Pressure at 65 Degree Celsius (ºC) Temperature | 3 bar |
| Change Out Different Pressure at 52 Degree Celsius (ºC) Temperature | 2.5 bar |
| Applications | |
|
|
